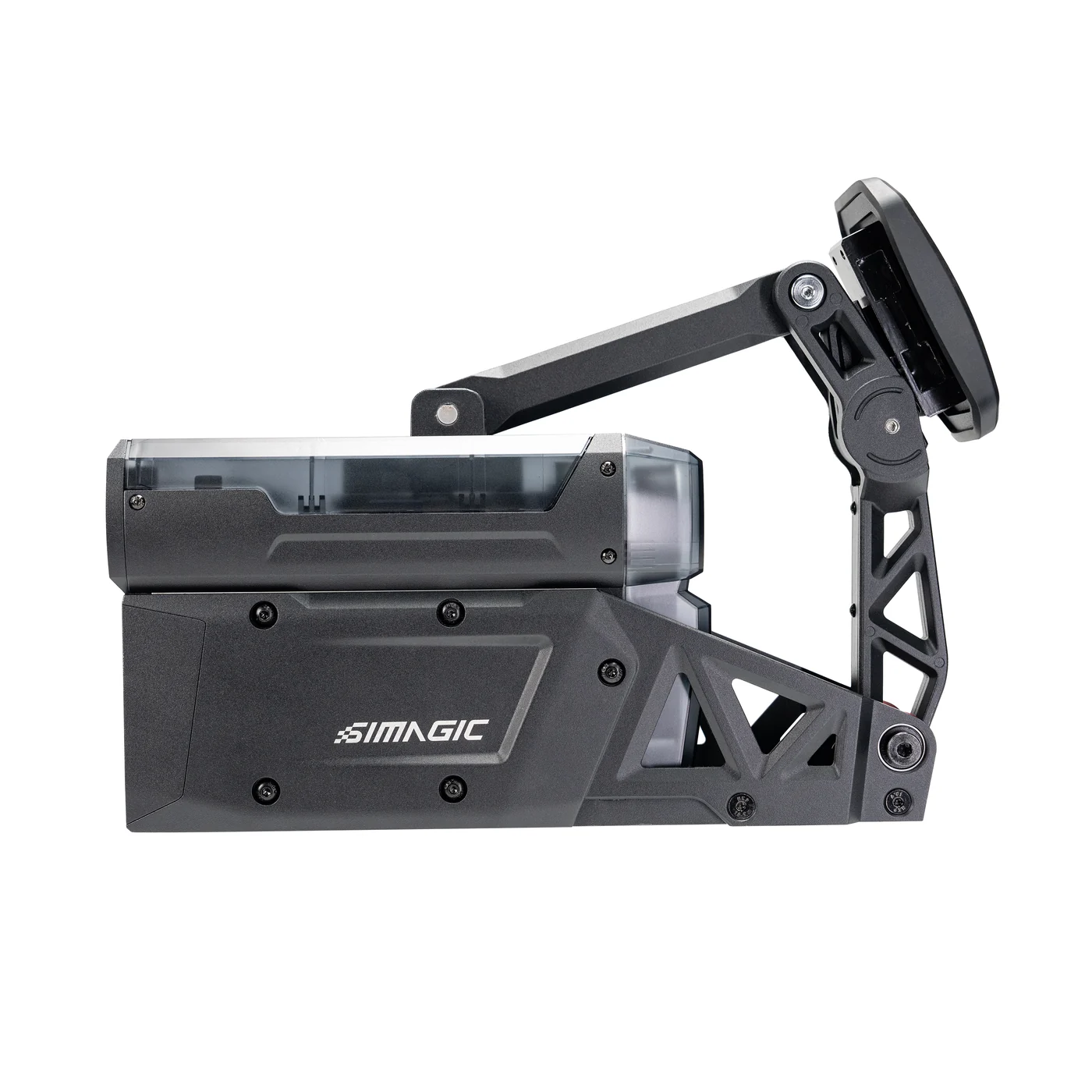

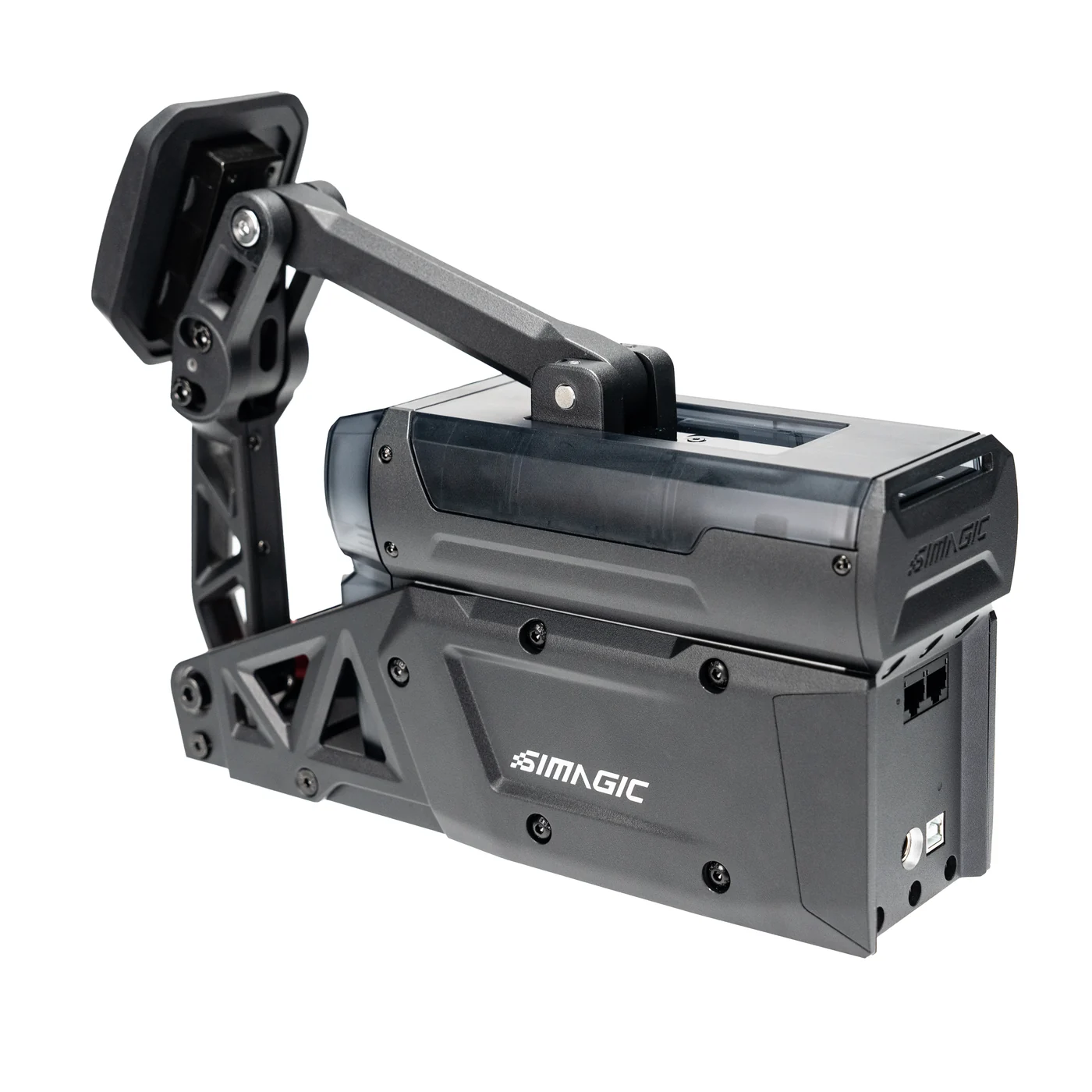

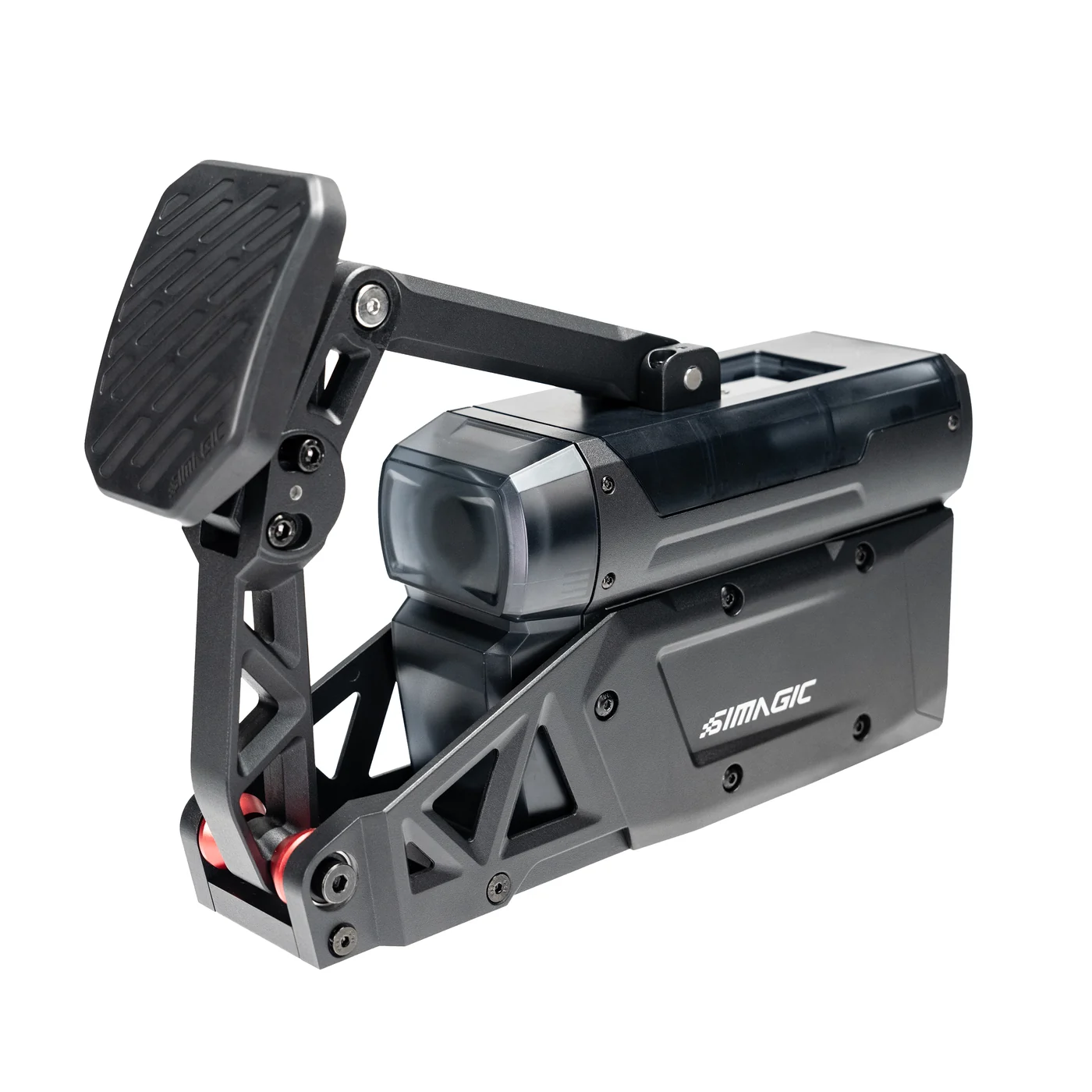

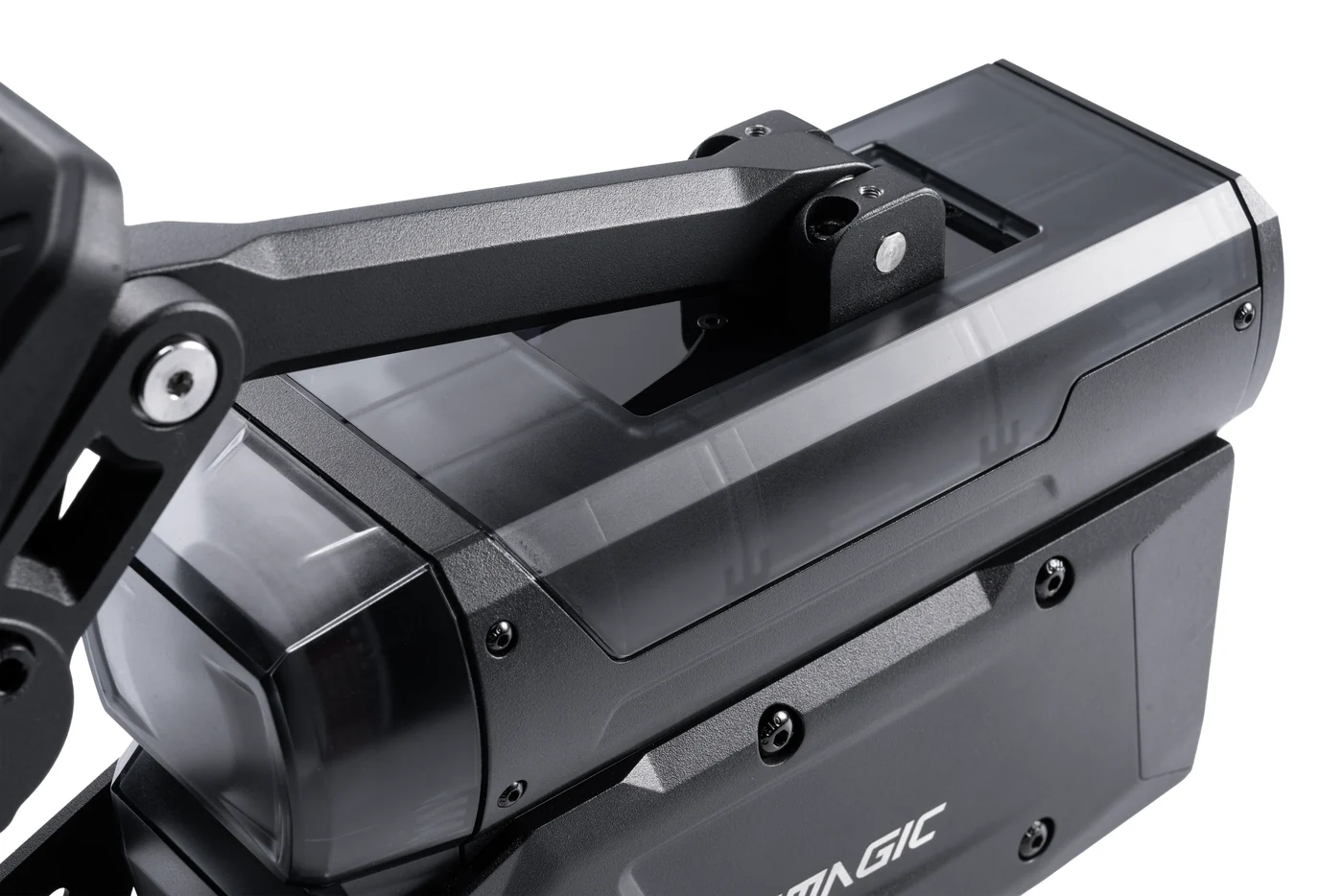

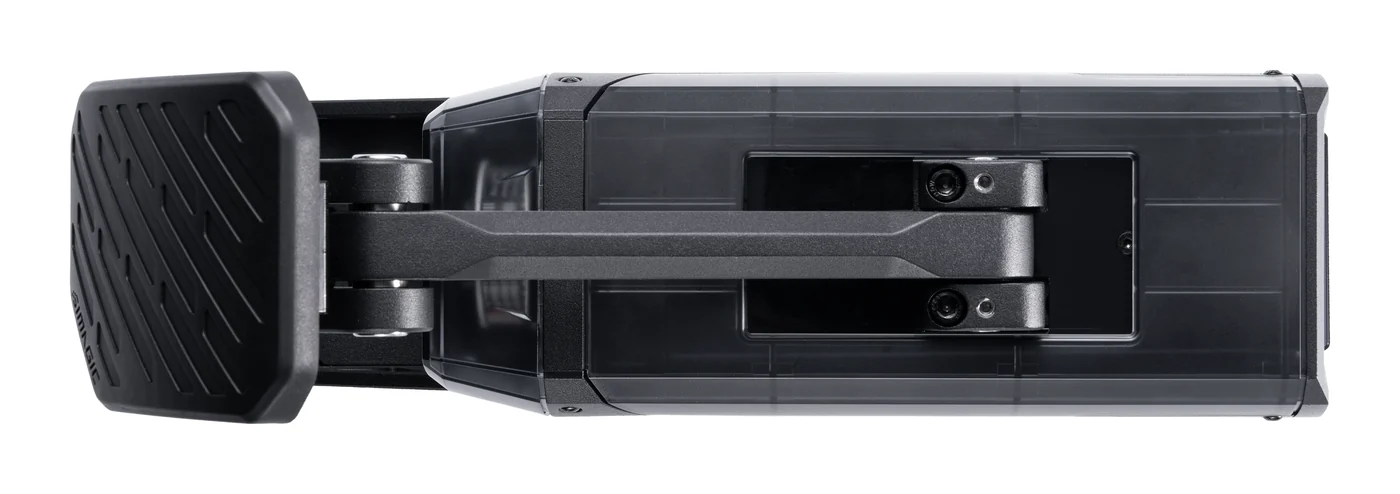

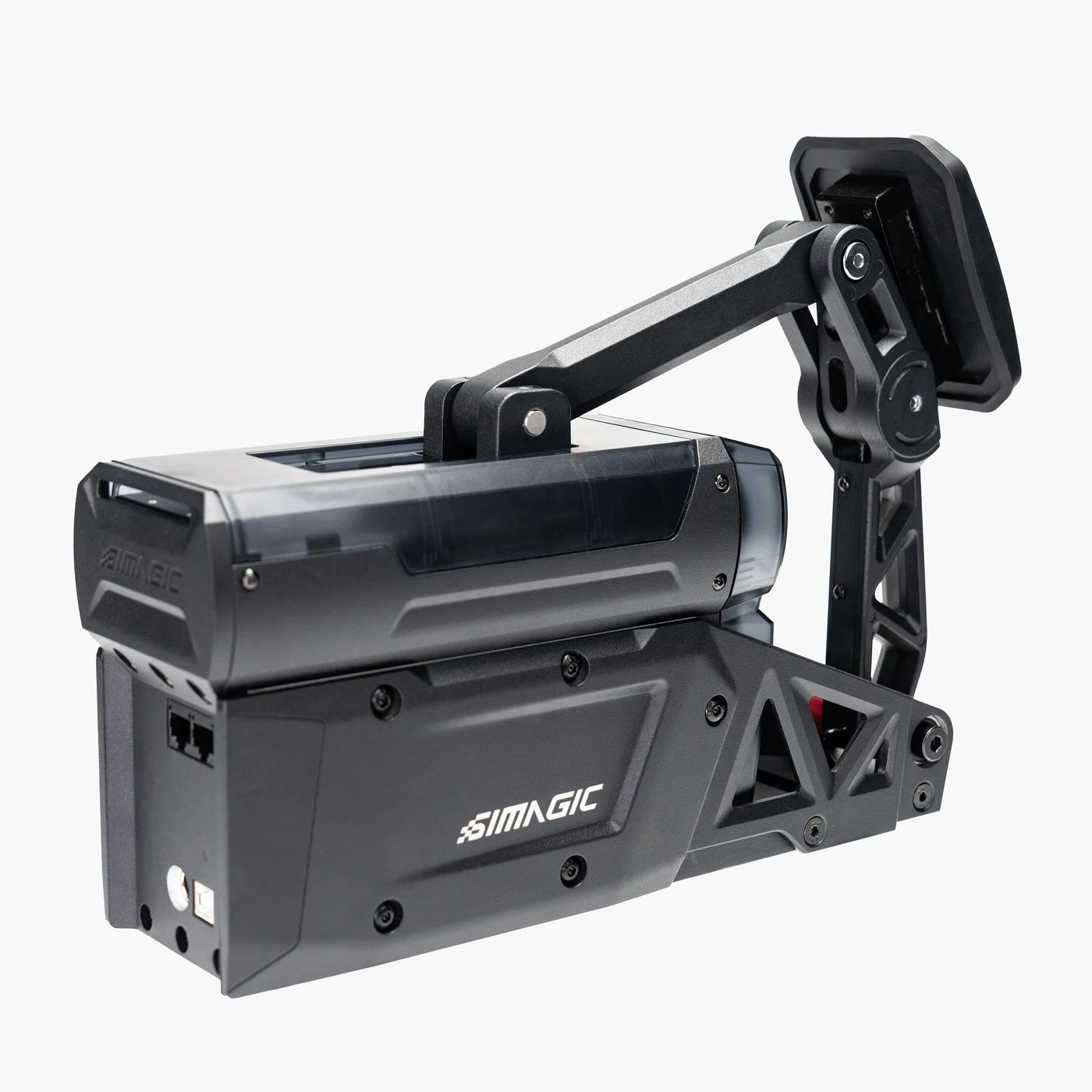

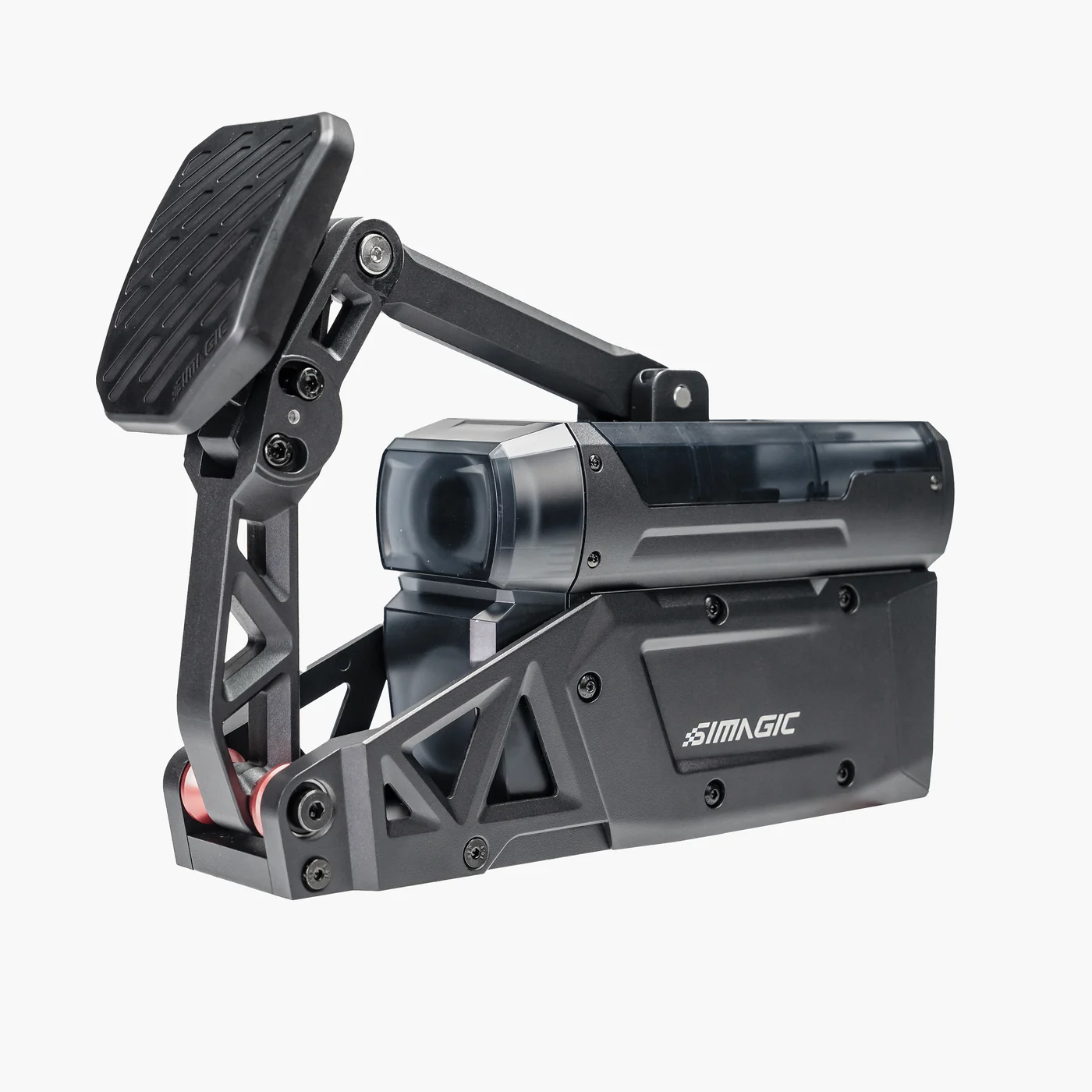

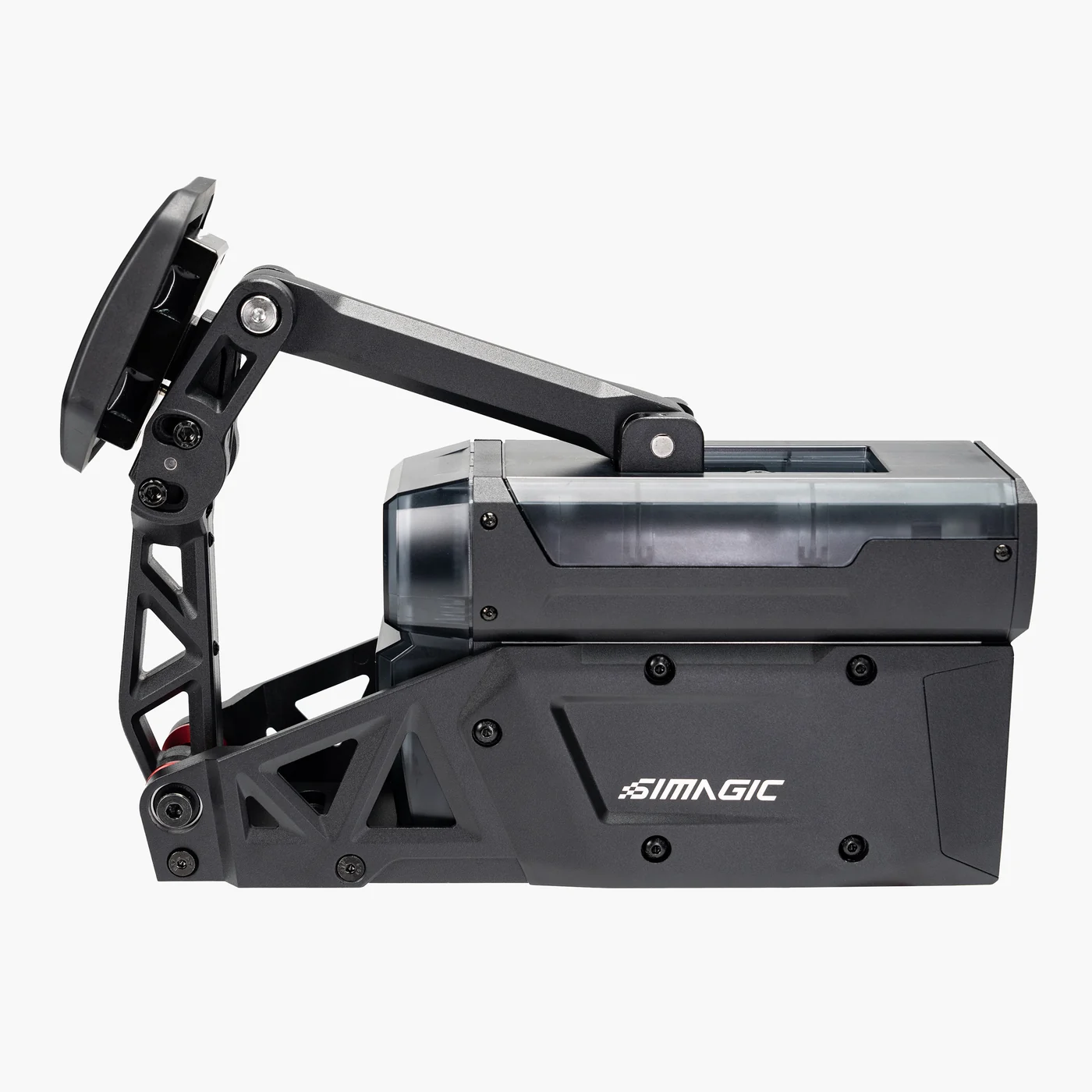

Simagic P-Active active pedal
180kg
13,945 krincl. VAT
Pre-order
Simagic's first active pedal. A servo motor drives the resistance, so the same pedal can feel like a spring, an elastomer or a hydraulic system without swapping a single part. Everything is set in SimPro Manager: force, travel, curve, deadzone and whether the pedal acts as brake, throttle or clutch.
The pedal takes telemetry from the game and you feel it through your foot: ABS, traction control, wheel lock, wheel slip, RPM, the clutch bite point and gear shifts. Two 250 kg load cells with 16 bit resolution read the pressure, and braking force goes up to 180 kg. The full stroke returns in 100 ms.
Fits the P1000 and P2000 with the included adapter kits, or the P-Active baseplate. Requires a PC.

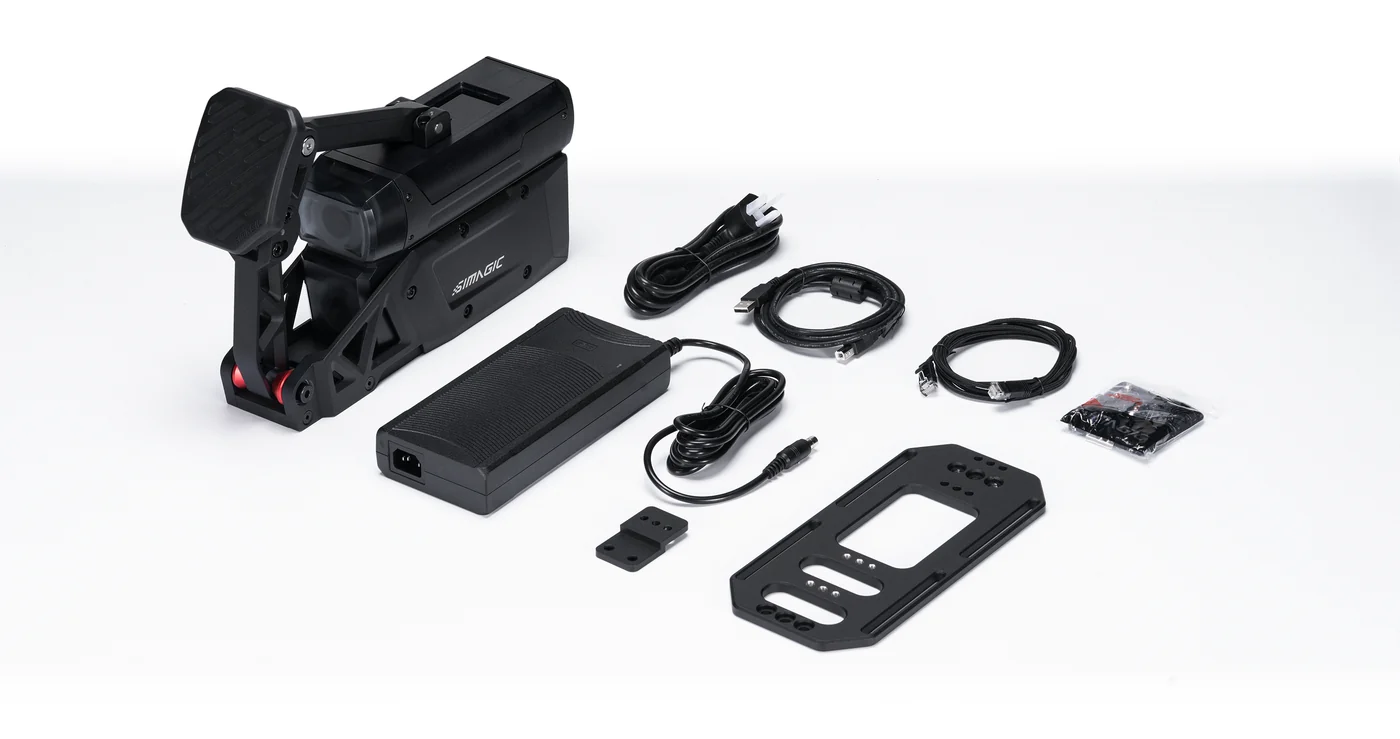

In the box: the P-Active pedal, P1000 and P2000 adapter kits, screws, cables and a quick guide.
Shipping is calculated from the product's weight and size. At checkout you see home delivery and pickup points with prices and transit times before you pay.
- Free shipping over 1,999 kr
- 30-day returns
- Support in Swedish and English
Specification
- Max braking force
- 180 kg
- Load cells
- 2 x 250 kg
- Resolution
- 16 bit
- Full stroke return
- 100 ms
- Power
- 48 V, max 398 W
- Dimensions
- 336 x 87 x 242 mm
- Weight
- 6,1 kg
